PP PE Plastic Testing Equipment , Melt Flow Indexer Rubber Melting Machine

Dongguan Liyi Environmental Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

PP PE Plastic Testing Equipment , Melt Flow Indexer Rubber Melting Machine

  • 1
  • 2
  • 3

Brand Name : LIYI

Model Number : LY-RR

Certification : CE, ISO

Place of Origin : CHINA

MOQ : 1 Set

Price : US$1399~2999

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100set per month

Delivery Time : 5-15days

Packaging Details : export polywood case

Power : AC220V±10% 50Hz

Plastic Testing Machine : Melt Flow Index Tester

Temperature rangeradius : 400℃

Temperature accuracyblade to jawand dust collector : ±0.2 ℃

Display resolution : 0.1℃

Maximum comsuption : < 600W

Temperature recovery time : less than 4 min.

Name : PP PE Plastic Testing Machine JIS-K7210 Melt Flow Indexer

Contact Now

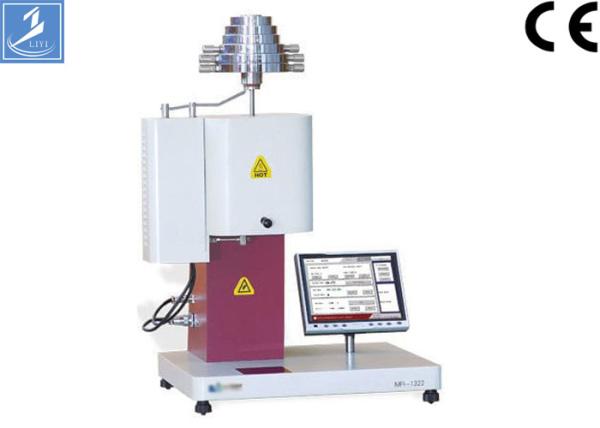

PP PE Plastic Testing Machine JIS-K7210 Melt Flow Indexer

Specifications

Melt Flow tester
1.Melt Flow Indexer is used to determine melt-mass flow rate .
2.High quality,melt indexer
3.Direct factory

PP PE Plastic Testing Machine JIS-K7210 Melt Flow Indexer

Melt Flow testing for PP and PE

1.Melt index tester is used to determine melt-mass flow rate (MFR).
2.High quality,melt indexer

Principle:

Thermoplastic melt flow rate (melt index) is plastic at a temperature and load, the melt every 10 minutes through a standard capillary die quality or melt volume, with MFR (MI) or the MVR value, which can distinguish thermoplastic adhesive in the molten state flow characteristics. For thermoplastics and chemical fiber raw materials, quality assurance of products and other products of great significance.

Purpose:

LCD Plastic Melt Flow Rate Testing Equipments (also known as melt index meter) was measured under certain conditions thermoplastic melt flow rate of the special equipment. With the determination of melt flow rate MFR, measured melt volume rate MVR, measured melt density ρ, measured melt flow rate ratio FRR and other functions, this machine high precision temperature control, key parts nitriding treatment, high strength and hardness , small deformation accurately measure the flow rate which provides a good condition.

Technical parameter:

Machine size(W*H*D)

250*510*350mm

Power

AC220V±10% 50Hz

Barrel parameters

Inner hole 9.55±0.025mm

Pistons parameters

Piston head: 9.475±0.015mm

Piston length

H=6.35±0.1mm

Paramters

Extrusion hole 1=2.095±0.005mm

Temperature parameter

With intelligent temperature control instrument,

with four pairs of significant temperature setting

control, PID parameters can be automatically set,

precision up to ± 0.1 degree centigrade

Temperature rangeradius

400℃

Temperature accuracyblade to jawand dust collector

±0.2 ℃

Display resolution

0.1℃

Maximum comsuption

< 600W

Temperature recovery time

less than 4 min.

Weight parameters

Weight accuracy

±0.5%

Basic configuration

0.325kg, 1.2kg, 2.16kg, 3.8kg, 5.kg, 10.0kg, 12.kg,

21.6kg

Position detection

Loop distance from up and down

30mm

Control precision

± 0.1mm

Test flow control

Times of cutting the material

0~10 times

Material cutting interval

0~999s(set reference Table 2)

Control flow reaches the set temperature without volatility

Barrel temperature time

15 min.

Material be installed

1 min

Material sample temperature recovery time

4 min.

When binder set

1min

Pictures:

PP PE Plastic Testing Equipment , Melt Flow Indexer Rubber Melting MachinePP PE Plastic Testing Equipment , Melt Flow Indexer Rubber Melting Machine
